Profiles

Administrator Guide

Update Profile

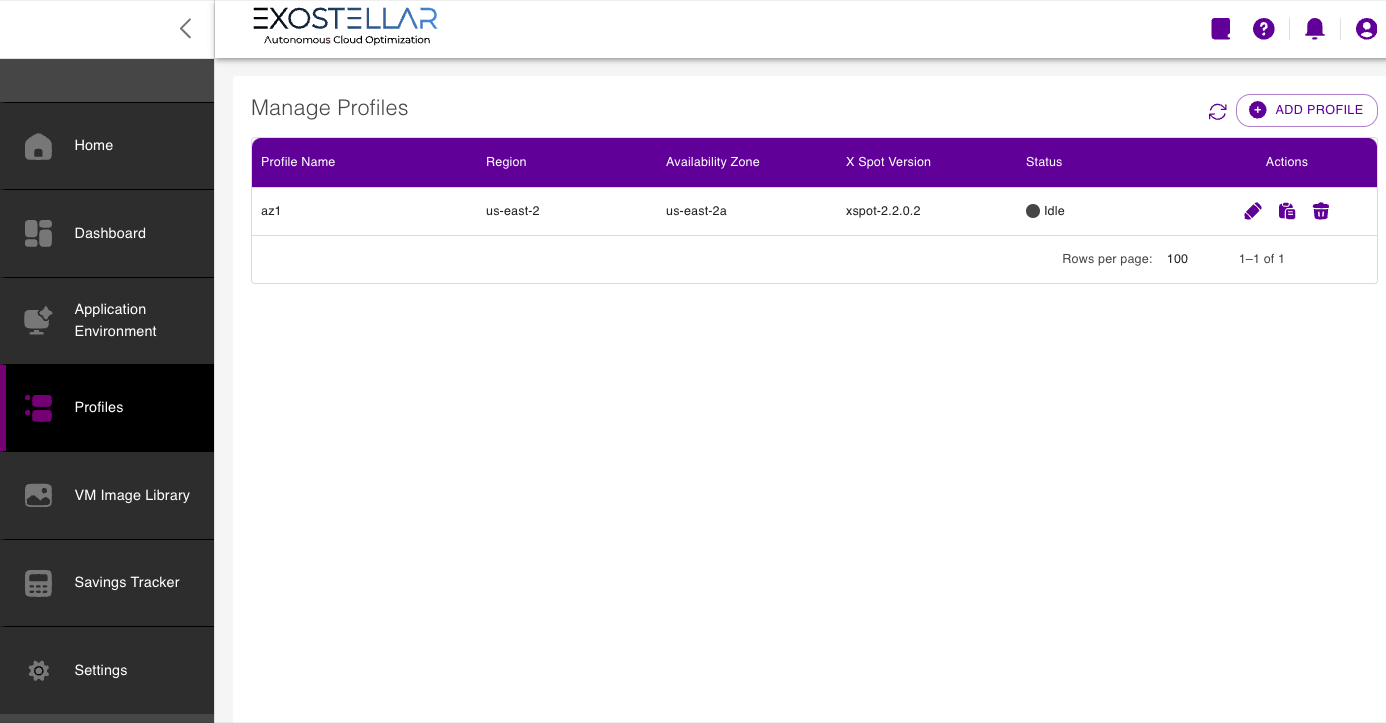

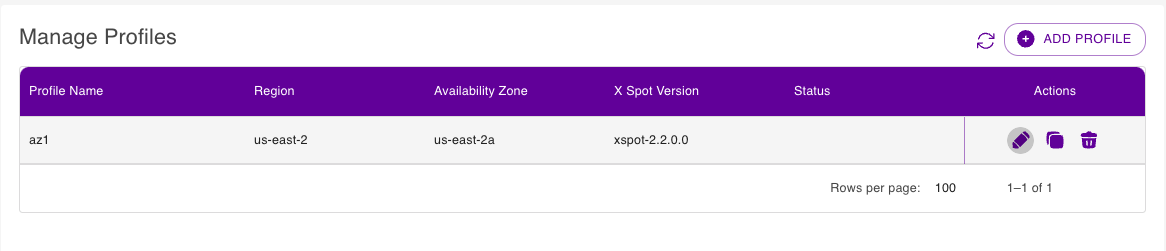

• Access Profile Editing: Click on the pencil icon to begin editing your profile.

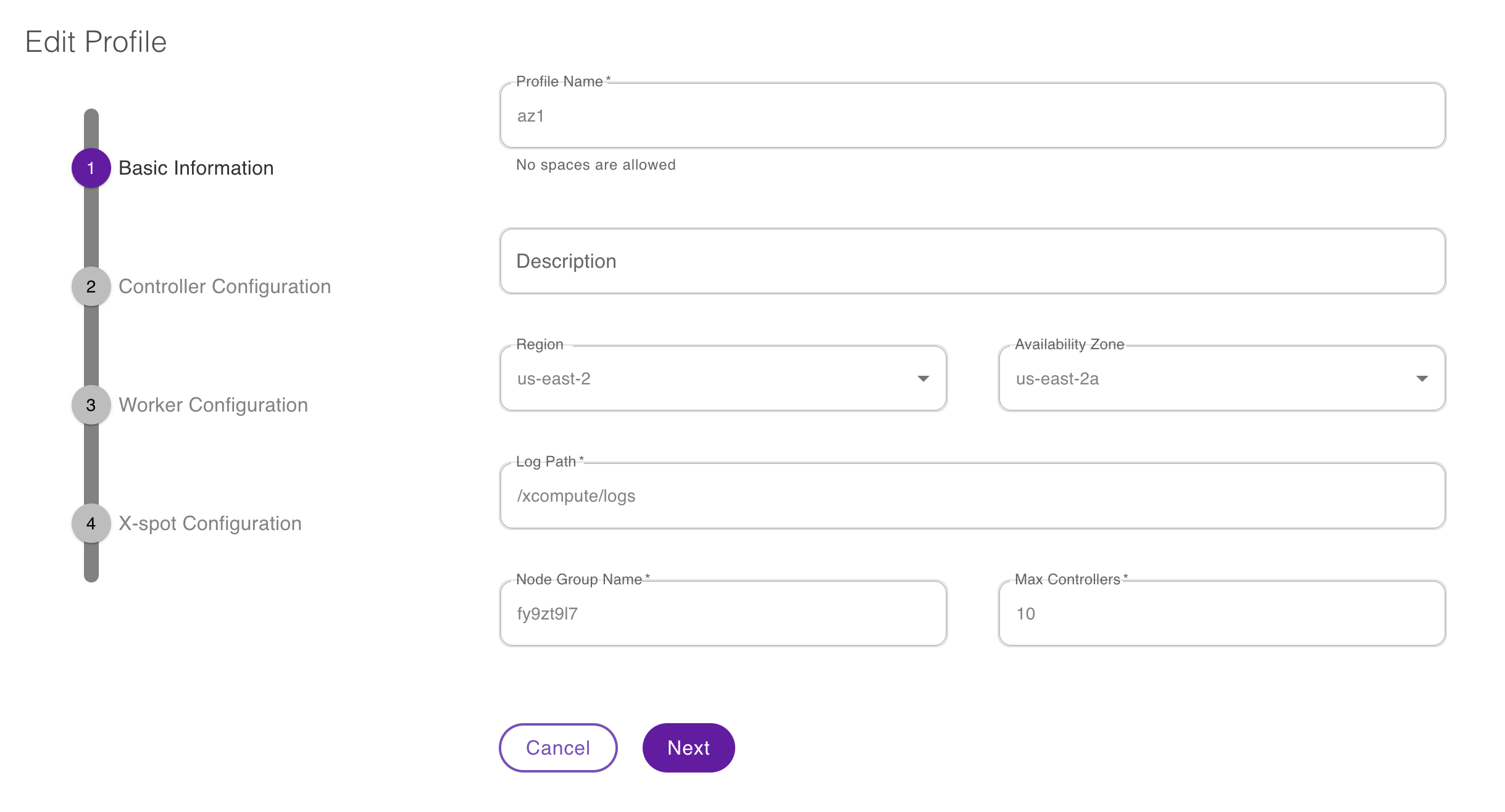

Step 1: Update Basic Information

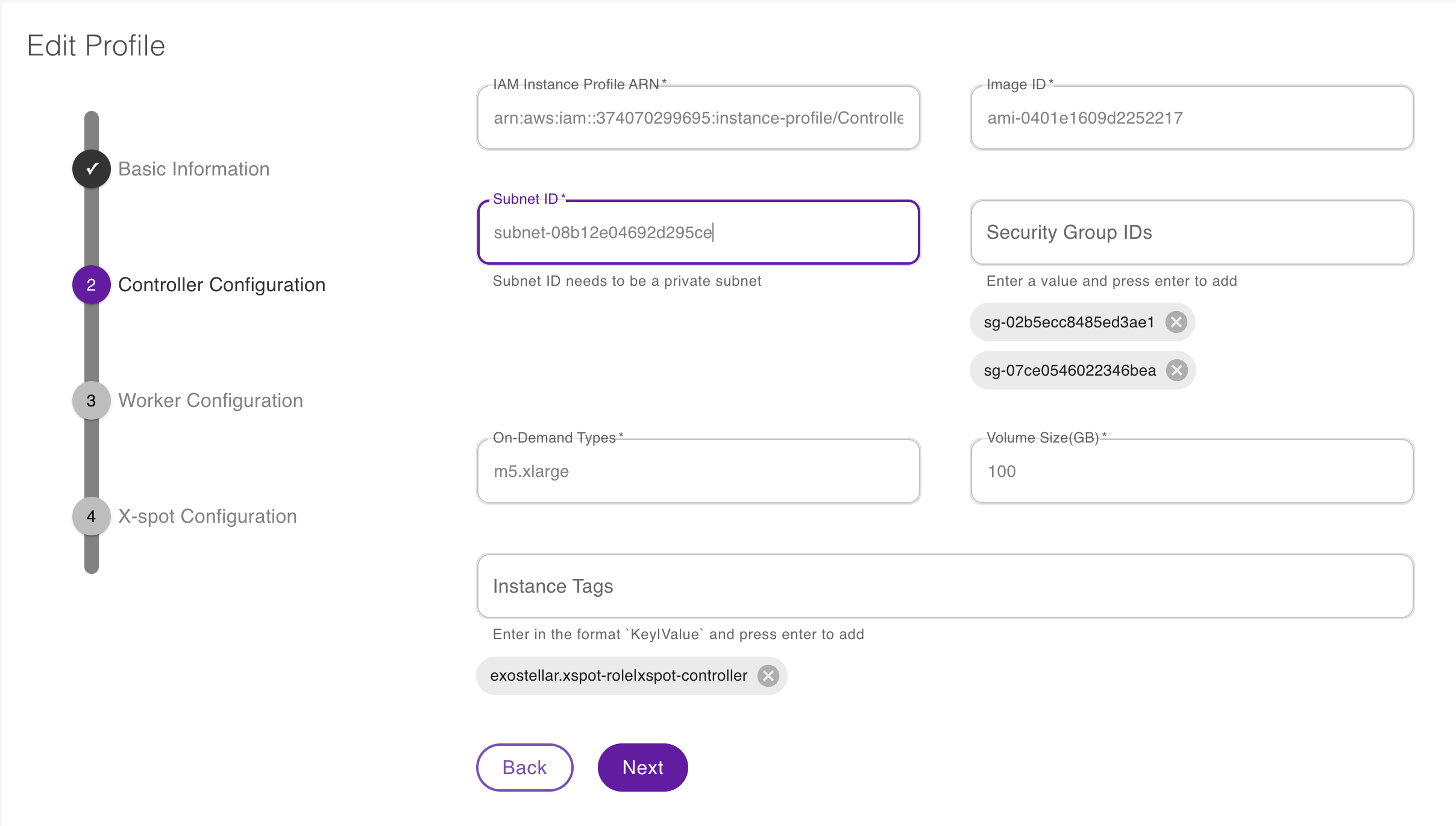

Step 2: Update Controller Configuration

• Update IAM Instance Profile: Replace the default IAM Instance Profile string with the Instance Profile ARN (Amazon Resource Name) of your Controller IAM.

• Deploy in a Private Subnet: Change the Subnet ID to the same private Subnet ID that the EKS Cluster has.

• Add Instances Tags: Add “Key|Value" pair as tags to your instances and press "Enter" before proceeding.

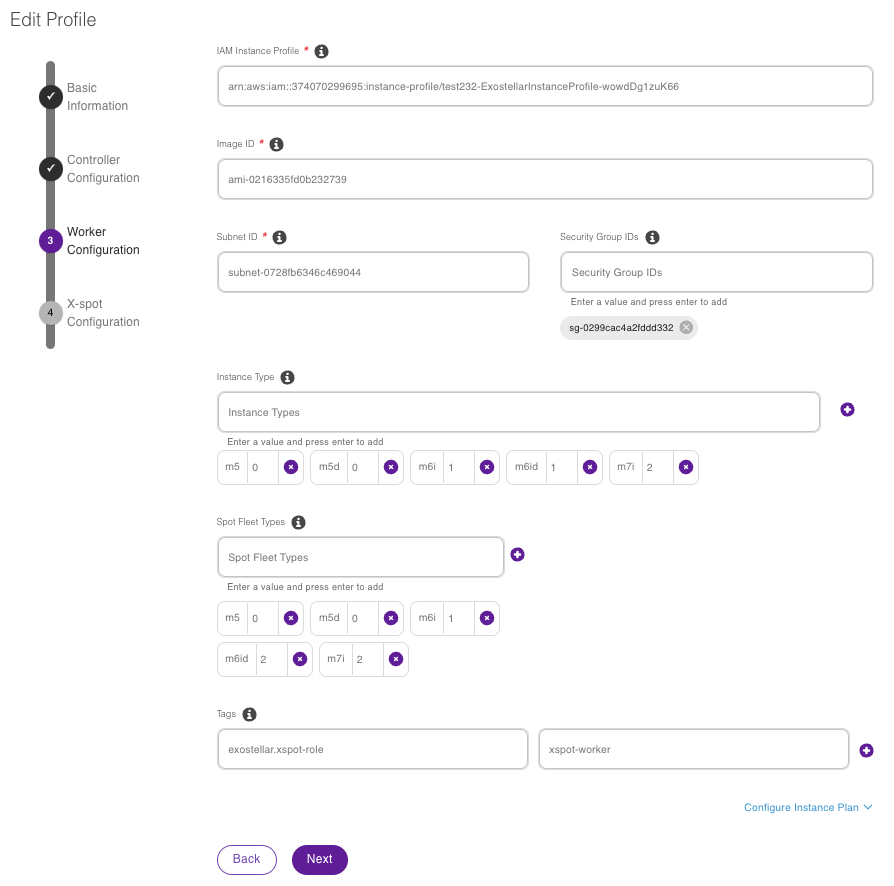

Step 3: Update Worker Configuration

• Update IAM Instance Profile: Replace the default IAM Instance Profile string with the Instance Profile ARN (Amazon Resource Name) of your Worker IAM.

• Deploy in a Private Subnet: Update the Subnet ID to use the same subnet as the above used for the Controller.

• Allow Communication to your EKS Cluster: Add your EKS Cluster Security Group to the Security Group IDs field.

• Define On-Demand Types: Enter instance families or specific instance types. This field is required.

• Enter Spot Fleet: Enter instance families or specific instance types. We suggest 5 or more instance types, including a mix of different instance families and generations (m5, m6i, or c5, etc.), for Amazon EC2 Spot Instances.

• Add Instances Tags: Add “Key|Value" pair as tags to your instances and press "Enter" before proceeding.

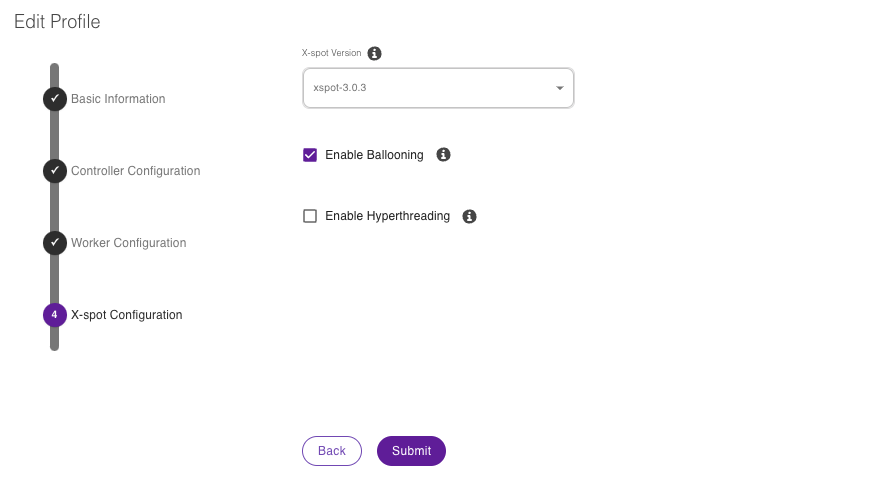

Step 4: Update XSpot Version if needed

Completion

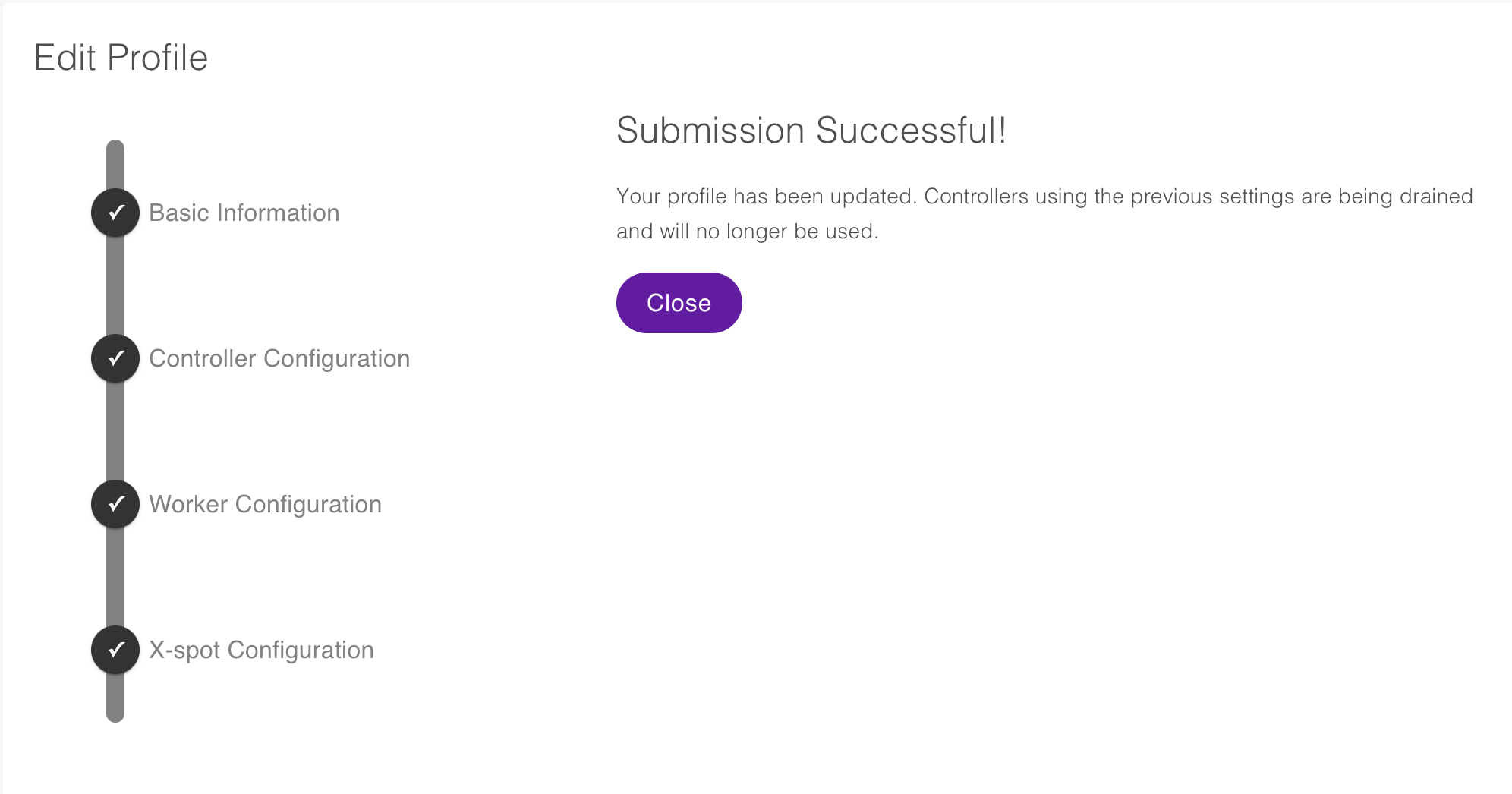

• A confirmation message, "Submission Successful!" will appear once the profile has been successfully updated.
